- Place of Origin: JIANGSU/ZHANGJIAGANG
- Brand Name: NEWLINE MACHINERY
- Model Number: NLM18-18-6H

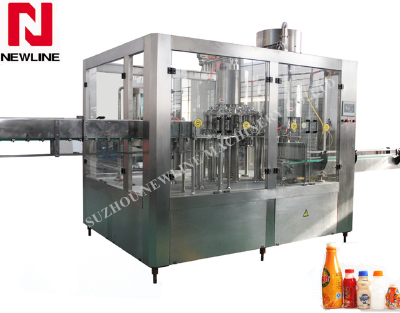

This machine is mainly used for hot filling of milk and juice etc, which integrating with washing, filling and sealing. It’s suitable for filling all kinds of heat-resistant PET bottles. It’s also easy, convenient and rapid to adjust for different bottles.
The machine adopts advanced Mitsubishi programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device, the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.
- Place of Origin: JIANGSU/ZHANGJIAGANG
- Brand Name: NEWLINE MACHINERY
- Model Number: NLM18-18-6H
NLM | NLM | NLM | ||
适用规格 Filling Volume | ||||
生产能力(瓶/小时) Production capacity (b/h) | 3000-4000 | 4500-6000 | 7500-9000 | 10000-12000 |
灌装阀数(Filling valves) | 16 | 18 | 24 | 32 |
冲瓶头数(Heads of washing bottle) | 16 | 18 | 24 | 32 |
拧盖头数(Capper heads) | 6 | 6 | 8 | 10 |
适用瓶形(Suitable bottle shape ) | 圆形或方形(Circular or square) | |||
总功率KW( Total power KW) | 3.5 | 4 | 4.5 | 5.5 |
外形尺寸mm( Overall dimension mm) | 2400×1750×2000 | 2500×1900×2000 | 3100×2100×2000 | 3800×3000×2000 |
重量Kg(Weight) | 2500 | 3500 | 4500 | 5000 |
